How to apply structural ink to a shape

Question

How can I apply structural ink to a selected shape

Pre-Request

1. Minimum release version : Roland DG Connect Designer v2.0
2. Valid Roland DG Connect ID
3. Having a document setup
4. Having a design with a Shape

Solution

Once you have created a design with a shape, you can select the shape and you have two elements on which you can apply structural ink.  Which are the stroke of the shape as well as the inner color can have structural assigned.

Beside assigning Stuctural Solid color your can also assign a pattern with structural ink.

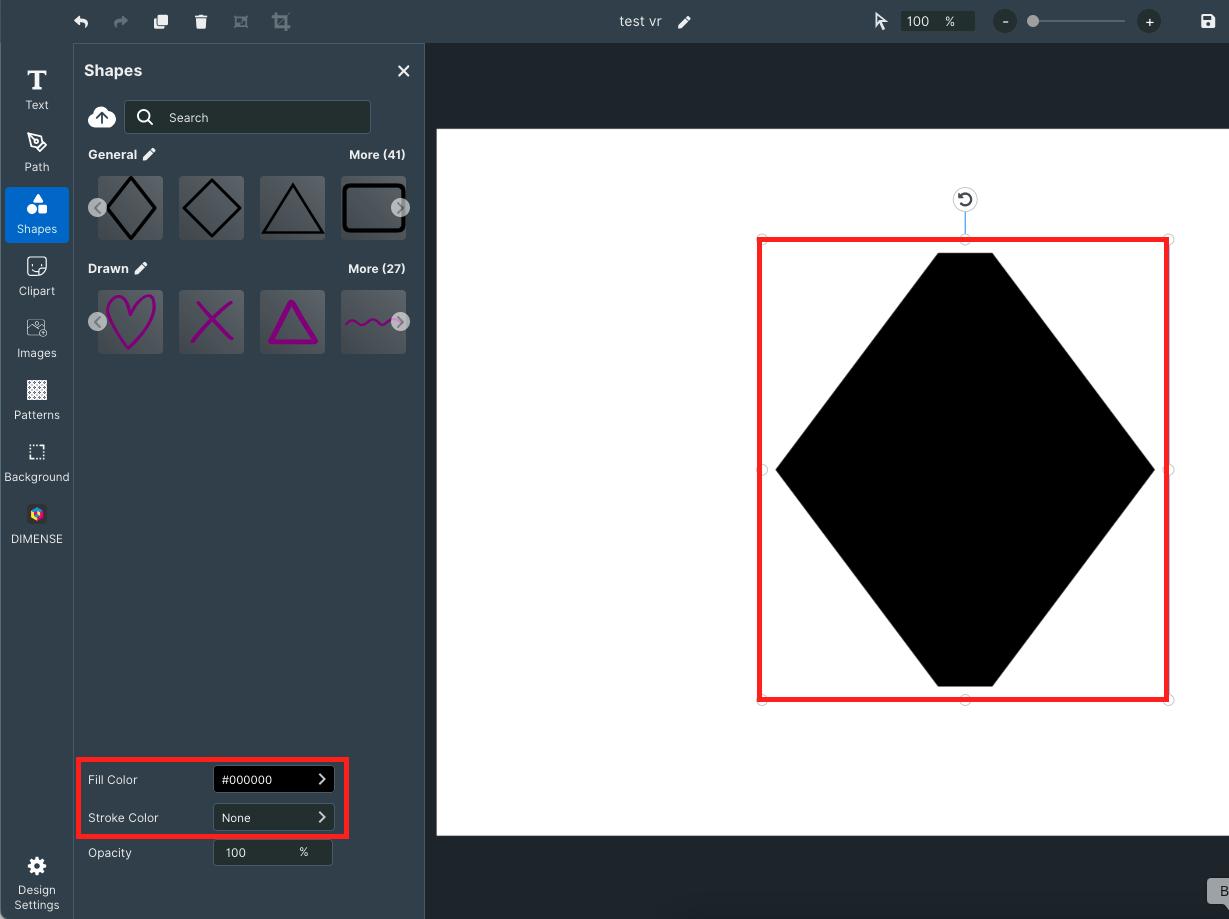

1. Select your shape

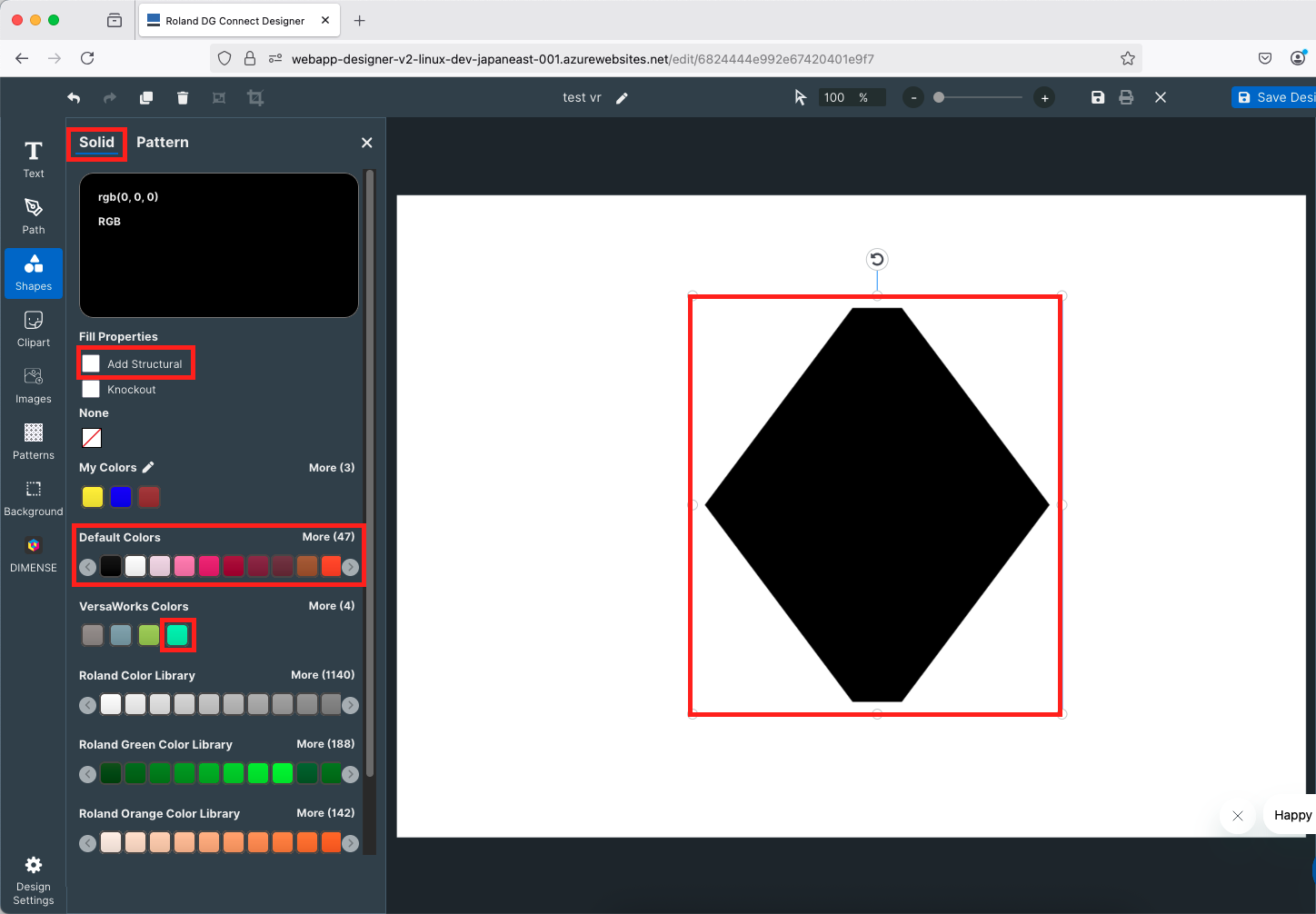

2. Click Fill Color or Stroke Color and Start with Solid
   1. When Solid tab is selected you can
      1. Add Structural ==> Add Structural ink to the selected shape respecting the black color of the shape
      2. Select Color ==> Color the shape with a color from the Default Color library
      3. VersaWorks Colors ==> Add full structural ink to the shape and replacing the black color
      4. Pattern ==> Click pattern to add a pattern the with structural or color to the shape

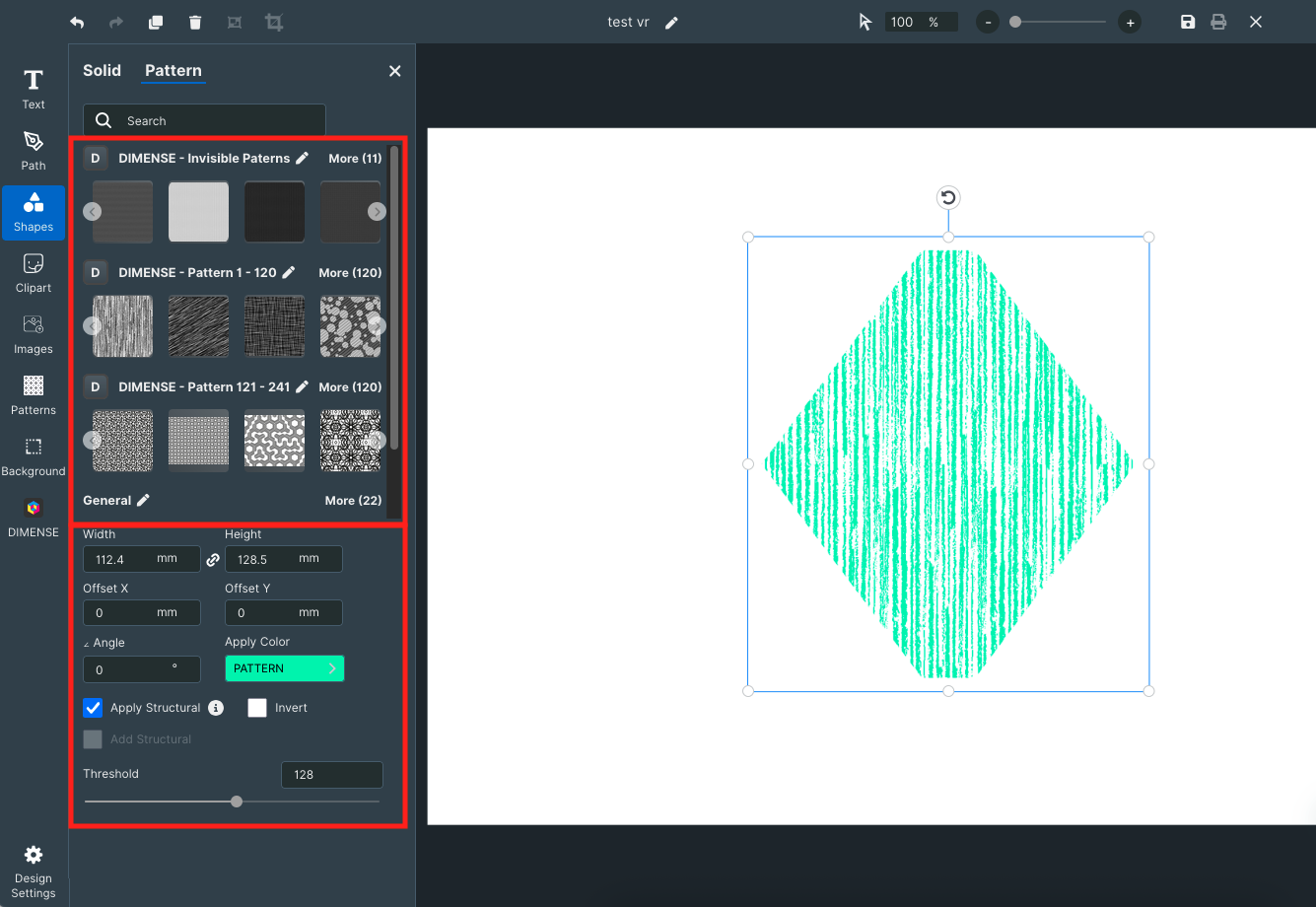

3. Select Pattern tab
   1. Have your shape selected
   2. Select the DIMENSE shape which you would like to apply
   3. You can resize the pattern within the shape by changing the width and heigh
   4. You can set an offset from X and Y
   5. You can rotate the pattern within the shape
   6. You can select the Apply Color "Pattern" and select the color which you would like to assign to the selected pattern
   7. You can "Add Structural" to the coloured pattern
   8. You can invert the selected pattern
