Create vectorized outlines from text

Question

Can I create a vectored outline from my written text

Pre-Request

  1. Minimum release version : Roland DG Connect Designer v2.0
  2. Valid Roland DG Connect ID
  3. Design Artboard

Solution

  1. Add text to your artboard
  2. Scale - Align the text as wanted

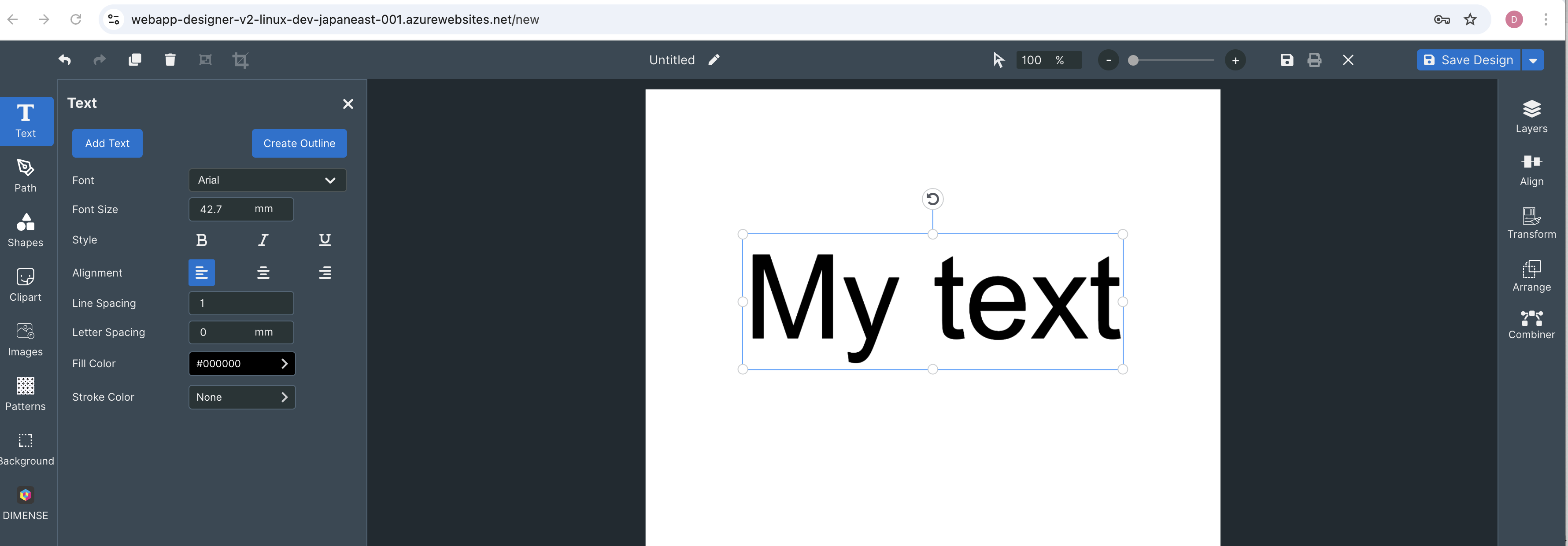

  3. Select your textScreenshot 2025-05-21 at 09.11.10.png

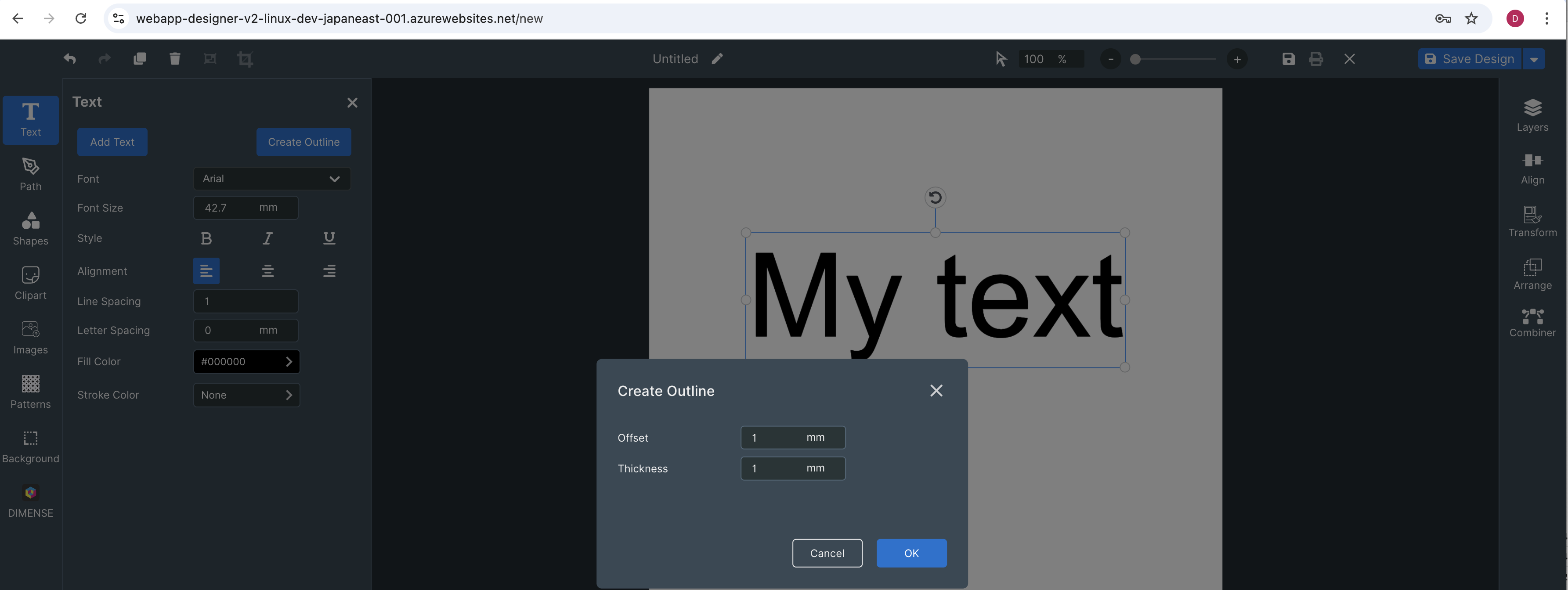

  4. Click blue button "Create Outline"
    1. Define the Offset and Thickness for the outline
    2. Click "OK"Screenshot 2025-05-21 at 09.12.36.png

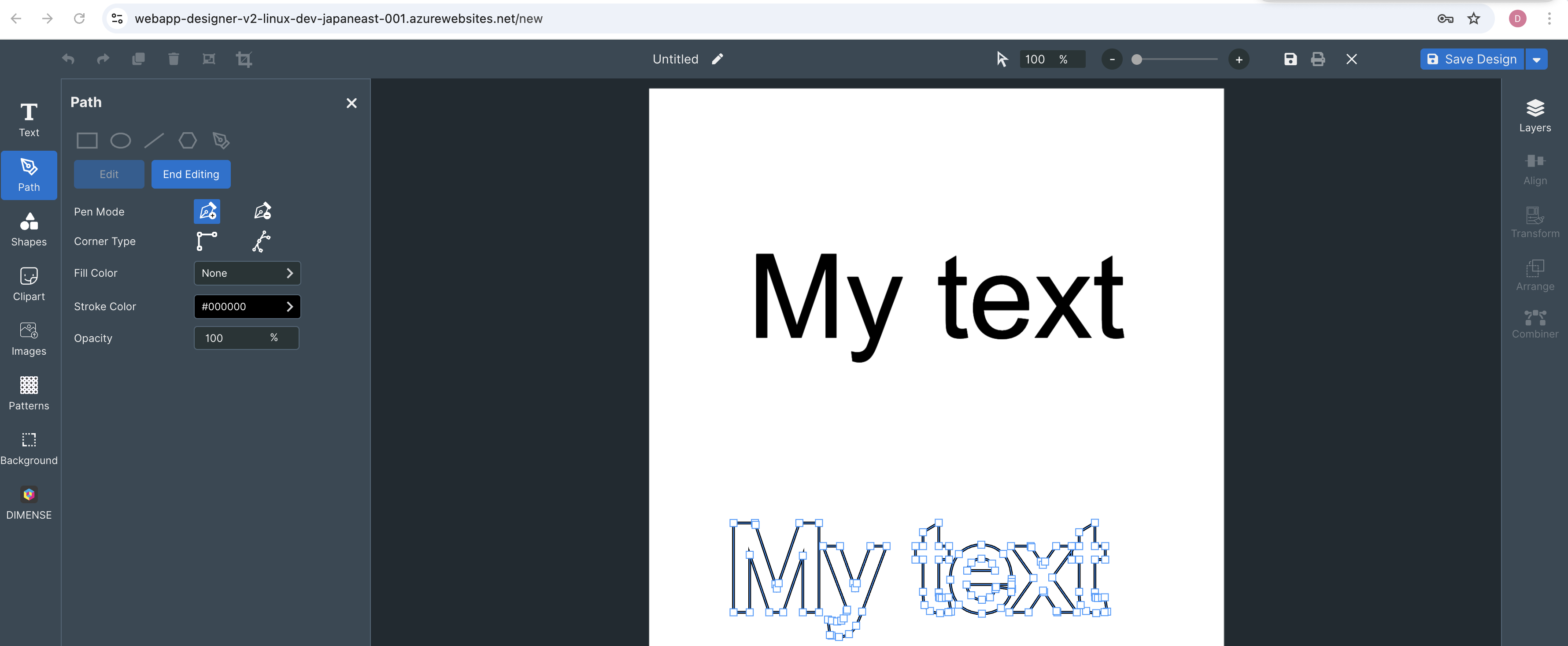

  5. Double click on the outlined textScreenshot 2025-05-21 at 09.15.25.png
