Question

How can I assign cut paths to selected layers

Pre-Request

  1. Roland DG Connect Account
  2. Roland DG Connect Designer Object Decoration or Visual Communication subscription active

Solution

With the Roland DG Connect Designer Visual Communication Module it's possible to assign cut paths to selected layers.  This makes it easy to organise cutting task based upon layer assignment.

Example : Assign cut paths to a layer and assign per cut paths to another layer
  1. Place a shape on the canvas
  2. Select the shape
  3. Go to Contour
  4. Click + Add Cutting Layer
    1. Cutting Layer 1 is added
  5. Click "Cut Contour"
    1. The Cut Contour is added to the "Cutting Layer 1"
  6. click + Add cutting Layer
    1. Cutting Layer 2 is added
  7. Click PerCut contour
    1. The PerfCut contour is added to the "Cutting Layer 2"

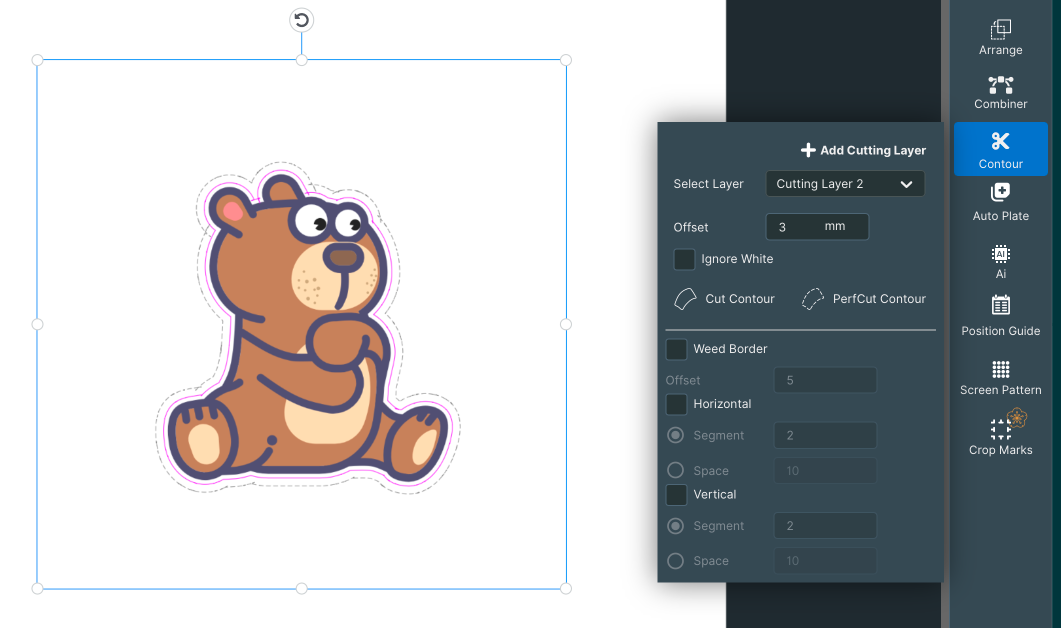

Screenshot 2026-03-31 at 18.14.25.png

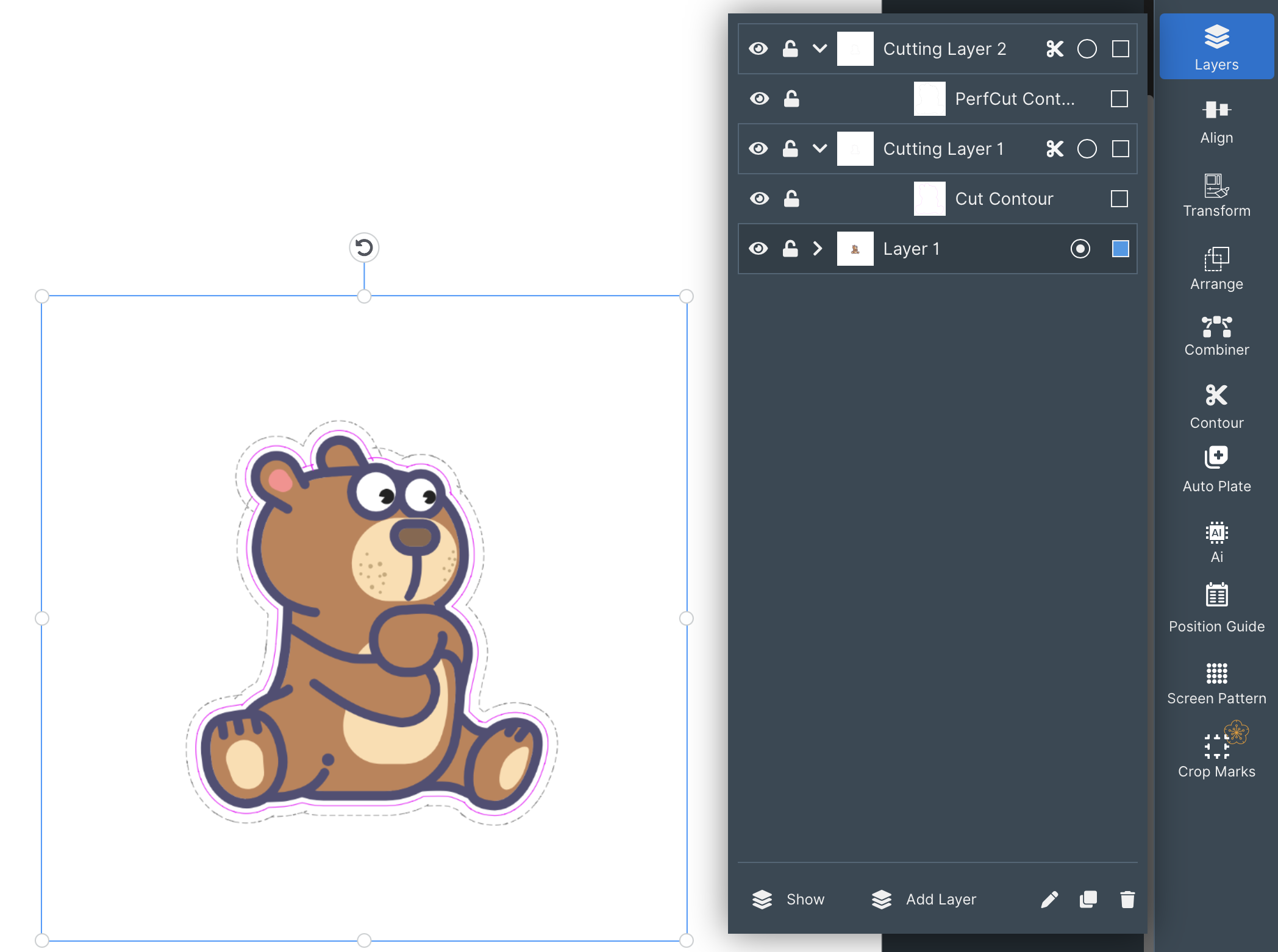

Screenshot 2026-03-31 at 18.14.40.png
