"Time for Sponge Replace" Message

Important notes on this procedure:

  • Wear gloves and safety glasses when replacing the ink-absorbent material.
  • If any ink gets on your hands or clothing, wash it off as soon as possible.
  • Dispose of used absorbent material in accordance with your local laws.


When this message is displayed on your VersaCAMM please follow the below steps.

Required material:


1. Switch off the sub power and the main power.

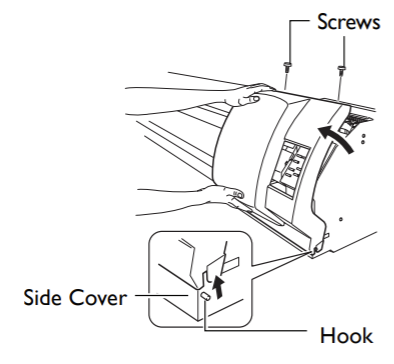

2. Remove the side cover.


3. Pull out the discharged-ink tray and replace the absorbent material.


4. Secure the discharged-ink tray in place and re-attach the side cover.


5. Switch on the main power and the sub power. The below will be displayed.


6. Press Enter. The process is complete.

  • DGB COLOUR USER - Time For Sponge Replace.pdf
    300 KB Download
