Roland DG Connect Setup Guide -- For Windows +USB cable --
Roland DG Connect Hub is software that uploads the operational status of the printer and other information to the cloud environment. If Roland DG Connect Hub is not running or if you are not signed in, you will not be able to view the device status on Roland DG Connect.
Before starting your daily work, please make sure that Roland DG Connect Hub is running.
Additionally, for managing licenses in VersaWorks 7, it is mandatory to register a Roland DG Connect ID when using VersaWorks 7. Please make sure that you install Roland DG Connect Hub and complete the ID registration.
If you are using a Windows PC and connecting the printer and PC with a USB cable, please refer to the following procedure.
- If you are using a Windows PC and connecting the printer or cutting machine with a network cable, please refer to the steps in the following link.
https://support.rolanddg.com/hc/en-us/articles/43642210630297
- If you are using a Mac OS, please refer to the steps in the following link.
https://support.rolanddg.com/hc/en-us/articles/43926542756249
Setup instructions if you are using a Windows PC and connecting your printer and PC with a USB cable
There are four steps to set up Roland DG Connect.
1. Create a new Roland DG Connect ID.
2. Download and Install Roland DG Connect Hub.
3. Device set up on Roland DG Connect Hub.
4. VersaWorks 7 Installation and License Authentication
1. Create a new Roland DG Connect ID.
To use VersaWorks 7, you need the Roland DG Connect Hub Windows application, which connects your device to the cloud. Please follow the steps below to download the latest version.
1-1 Click the link below to open the Roland DG Connect website:
Open Roland DG Connect

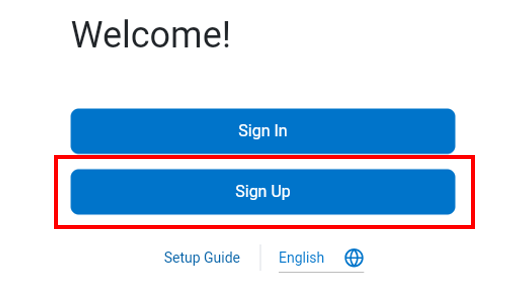

1-2 Click “Sign Up” to create a new Roland DG Connect account.
1-3 Enter your Email Address (Roland DG Connect ID) and Click “Send verification code”

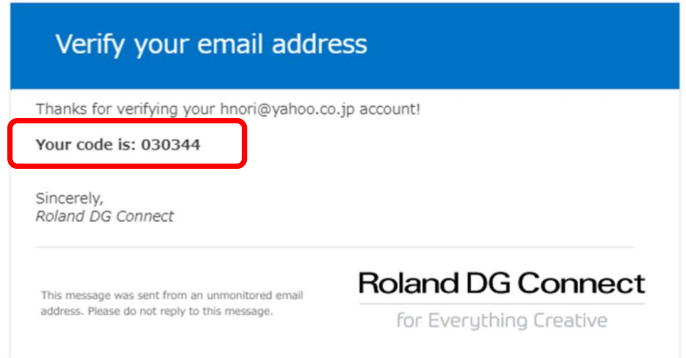

1-4 You will receive an Email with a verification code as below.

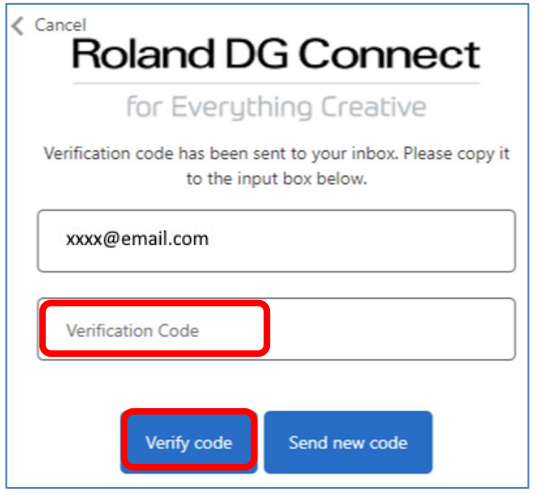

1-5 Enter your verification code and click “Verify Code”.

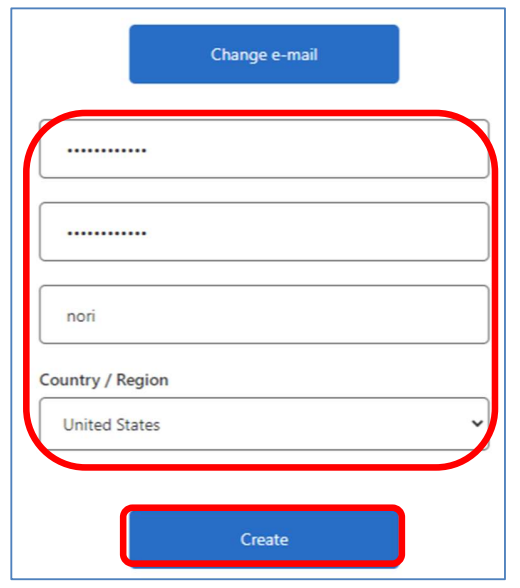

1-6 Enter or select all the necessary information and click “Create”.
1-7 Log in to the Roland DG Connect website using your registered account.
https://connect.rolanddg.com/#/home
2. Download and Install Roland DG Connect Hub

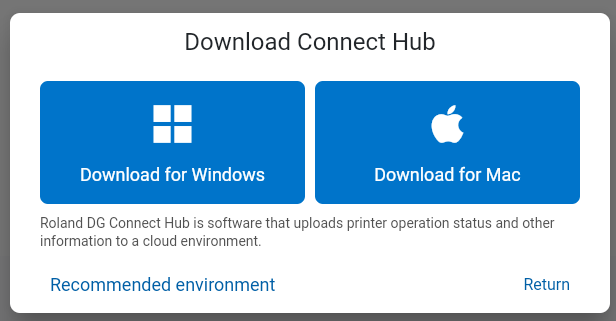

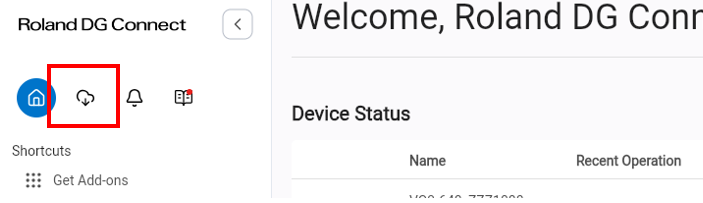

2-1 Click the download icon in the upper-left corner of the Home screen, then download and install Roland DG Connect Hub.

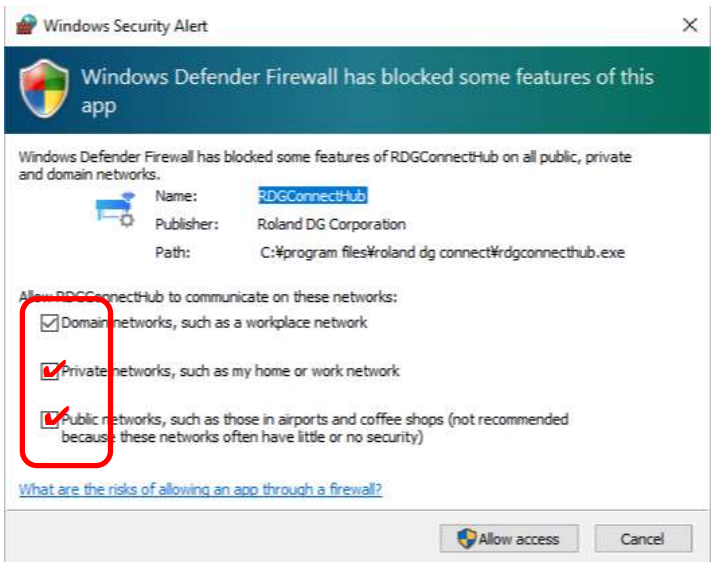

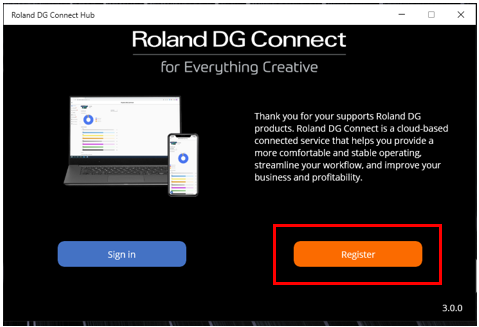

2-2 Launch the Roland DG Connect Hub and sign in to the Roland DG Connect Hub using the ID and password you created in Roland DG
3．Device set up on Roland DG Connect Hub

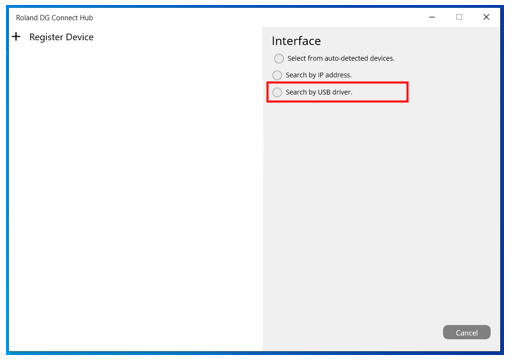

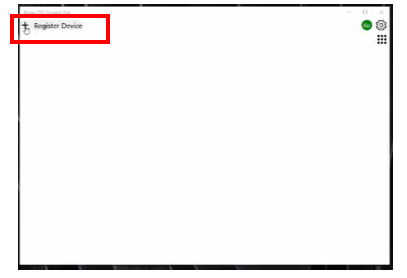

3-1 If you are installing a new driver: Do not connect the PC to the printer with the USB cable yet.” From “Register Device,” select “Specify by USB Driver".
*If the driver is already installed: Proceed to step 3-4.
3-2 Download the software package for your printer from “Download Software Package”.

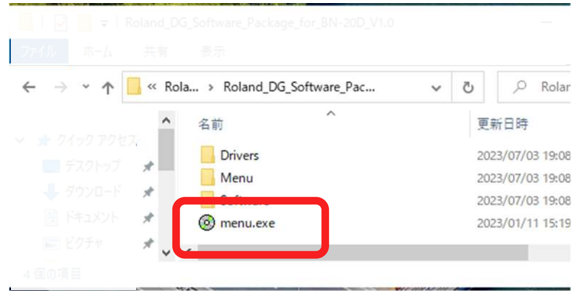

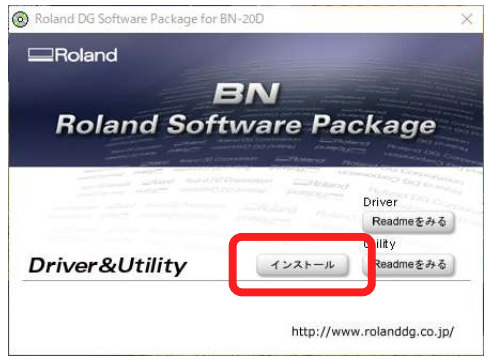

3-3 Unzip the downloaded software package, click on menu.exe and execute “Install”.
3-4 After the installation is complete, connect the PC to the printer with a USB cable. Click “Specify by USB driver” again, select the printer you are using, and register it.
Registration is complete when the screen appears as shown below. Click the Roland DG Connect icon and then click "Open" to start Roland DG Connect.
4. VersaWorks 7 Installation and License Authentication

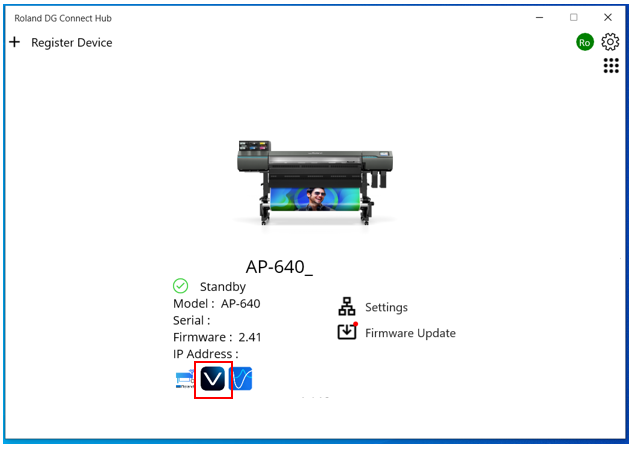

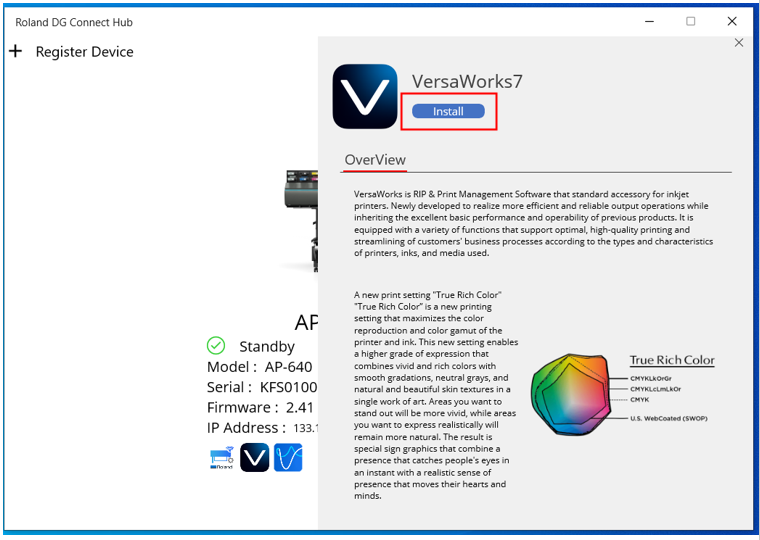

4-1 Click the "VersaWorks 7" icon and then click "Install" to download the VersaWorks 7 installer. Once all files have been downloaded, click "VersaWorks7.part1.exe" to install VersaWorks 7.

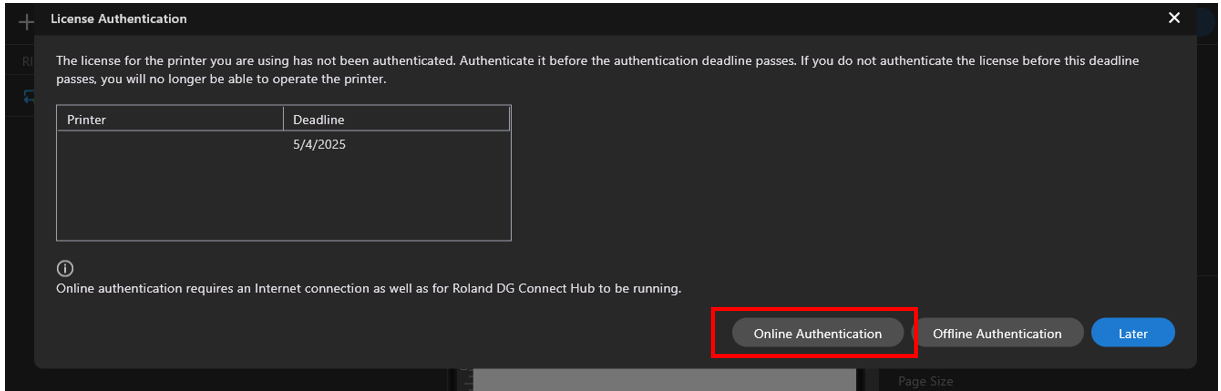

4-2 When you start VersaWorks 7, the license authentication screen shown below will appear. Make sure that Roland DG Connect Hub is running, then click "Online Authentication" to authenticate the license for VersaWorks 7.
Enjoy the wonderful features of Roland DG Connect.
